DS ejectors

Working domains

Suction pressure	up to 85000	Pa
Suction flow	up to 0.02	kg/s
Supply pressure	3 to 7	barg
Kinetic efficiency	13-70	%

Suction pressure[Pa] vs Suction flow[kg/s]

The DS Arodin Coanda ejectors have 2 main dimensions and also 3 geometric dimensions and 2 other thermodynamic supply parameters (pressure and temperature) in order to control the flow and make the necessary adjustments or each flow conditions and each customers needs.
The Coanda ejector is more complex flow device than a simple rotor fan or blower therefore the flow characteristics is done by adjustments of geometric dimension, pressure and temperature. The input temperature is critical for the efficiency of the device therefore the efficiency is not shown on the diagram because is depending on the input local customer conditions.

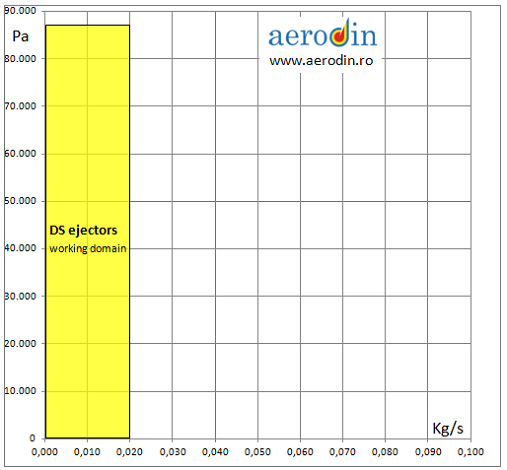

The diagram suction pressure [relative Pa] vs suction flow [kg/s] for different "p" supply pressures [barg] should be drawn wherever inside the following domain:

Dimensions & weight

Lenght	up to 250	mm
Duct	up to 50	mm
Weight	up to 0.4	kg

Note:
AERODIN is reserving the right to update the data according with new theory estimation, design or technology.
