VACUUM ejectors

MOLTEN METAL manipulation

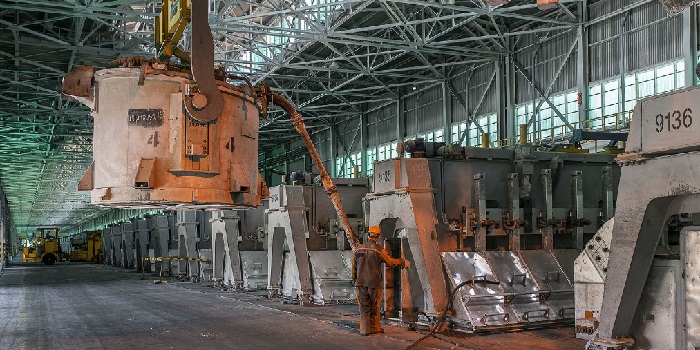

The air ejectors works for MOLTEN METAL manipulation are no mechanical moving parts devices powered by an external compressed air. The target application is creating a strong vacuum in order to create the necessary suction in order to rise the molten metal in a pot and to be moved to the next industrial process. The vacuum is up to 70000Pa at the supply air pressure no more to 5 bar rel. The ejectors are very safe and reliable. (photo www.aluminiumleader.com)
Usual ejector types for this application are:

DS

DOMESTIC vacuum cleaners

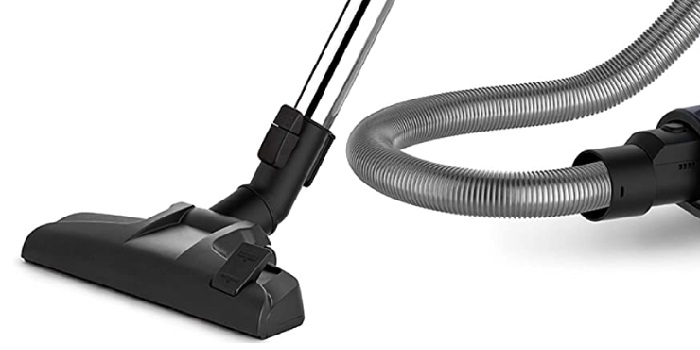

The air ejectors works for DOMESTIC vacuum cleaners are no mechanical moving parts devices powered by an external blower, compressed air or mobile pressure tank. The target application is creating a strong vacuum in order to create the necessary suction in order to clean homes. The produced vacuum is up to 35000Pa at the supply air pressure no more to 2 bar rel. The ejectors are very safe and reliable. (photo vacuum cleaner detail)
Usual ejector types for this application are:

DS

INDUSTRIAL vacuum cleaners

The air ejectors works for INDUSTRIAL vacuum cleaners are no mechanical moving parts devices powered by an external blower, compressed air or mobile pressure tank. The target application is creating a strong vacuum in order to create the necessary suction in order to clean industrial places. The produced vacuum is up to 45000Pa at the supply air pressure no more to 3 bar rel. The ejectors are very safe and reliable. (photo vacuum cleaner detail)
Usual ejector types for this application are:

HIDRO pumps vacuum starter

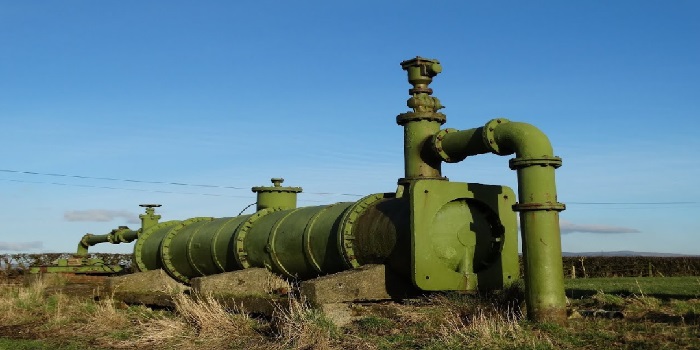

The air ejectors works as HIDRO pumps vacuum starter are no mechanical moving parts devices powered by an external blower, compressed air or mobile pressure tank. The target application is creating a strong vacuum in order to rise the water to start the water pump. The water can be rise up to 7 meters with a single stage ejector and more than 7m with other ejectors configuration. The ejectors are very safe and reliable working 10-15seconds. (photo huge water pump)
Usual ejector types for this application are:

DS

LEAF collection

The air ejectors works for LEAF collection are no mechanical moving parts devices powered by an external blower, compressed air or mobile pressure tank. The target application is creating a vacuum to create the necessary suction to collect leaf and other natural material in the streets. The produced vacuum is up to 35000Pa at the supply air pressure no more to 3 bar rel. The leaf pass throw the ejectors without damage them. The ejectors are very safe and reliable. (photo www.kendallcountynow.com)
Usual ejector types for this application are:

SAND & GRAVEL & ROCK vacuum

The air ejectors works for SAND & GRAVEL & ROCKS collection are no mechanical moving parts devices powered by an external blower, compressed air or mobile pressure tank. The target application is creating a vacuum to create the necessary suction to collect sand, gravel and small rocks. The produced vacuum is up to 45000Pa at the supply air pressure no more to 5 bar rel. The materials pass throw the ejectors but impacts could damage them in time. (photo acvarium gravel)
Usual ejector types for this application are:
