# HD70 ejectors

## Working domains

Suction pressure | up to 30000 | Pa |
---|---|---|

Suction flow | up to 0.3 | kg/s |

Supply pressure | 3 to 7 | barg |

Kinetic efficiency | 13-70 | % |

## Suction pressure[Pa] vs Suction flow[kg/s]

The **HD70** Coanda ejectors have 2
main dimensions and also 3 geometric dimensions and 2 other
thermodynamic supply parameters (pressure and temperature) in
order to control the flow and make the necessary adjustments or
each flow conditions and each customers needs.

The Coanda ejector is more complex flow device than a simple rotor
fan or blower therefore the flow characteristics is done by
adjustments of geometric dimension, pressure and temperature. The
input temperature is critical for the efficiency of the device
therefore the efficiency is not shown on the diagram because is
depending on the input local customer conditions.

We present only five representative diagrams **suction pressure
[relative Pa]** vs **suction flow [kg/s]** for different **"p"
supply pressures [barg]** as follows:

The diagrams were estimated using Coanda ejectors compressible inviscid flow theory based on AERODIN know-how and there are not fix but closer to the experiments.

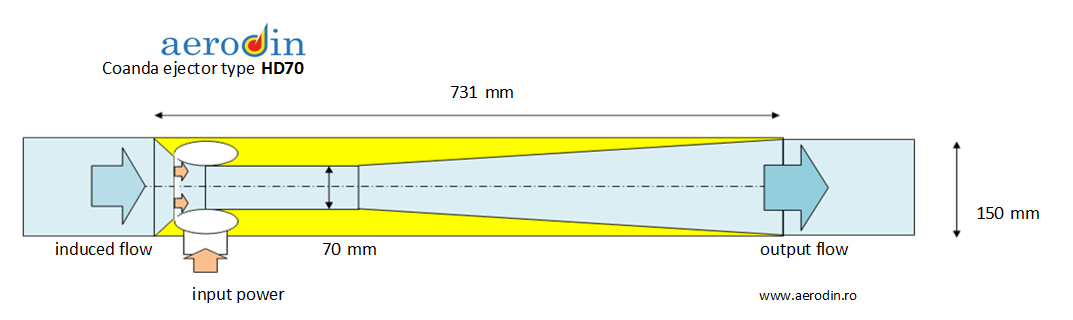

## Dimensions & weight

Length | 731 | mm |
---|---|---|

Duct | 150 | mm |

Weight | up to 5 | kg |

Note:

AERODIN is reserving the right to update the data according with
new theory estimation, design or technology.
