HD800 ejectors

Working domains

Suction pressure up to 5000 Pa
Suction flow up to 20 kg/s
Supply pressure 3 to 7 barg
Kinetic efficiency 13-70 %

Suction pressure[Pa] vs Suction flow[kg/s]

The HD800 Aerodin Coanda ejectors have 2 main dimensions and also 3 geometric dimensions and 2 other thermodynamic supply parameters (pressure and temperature) in order to control the flow and make the necessary adjustments or each flow conditions and each customers needs.
The Coanda ejector is more complex flow device than a simple rotor fan or blower therefore the flow characteristics is done by adjustments of geometric dimension, pressure and temperature. The input temperature is critical for the efficiency of the device therefore the efficiency is not shown on the diagram because is depending on the input local customer conditions.
We present only five representative diagrams suction pressure [relative Pa] vs suction flow [kg/s] for different "p" supply pressures [barg] as follows:

HD800_500

HD800_400

HD800_300

HD800_200

HD800_100

The diagrams were estimated using Coanda ejectors compressible inviscid flow theory based on AERODIN know-how and there are not fix but closer to the experiments.

Dimensions & weight

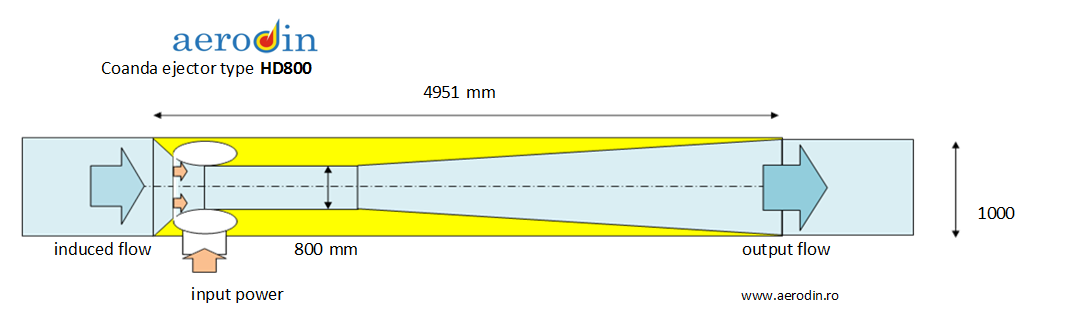

Length 4951 mm
Duct 1000 mm
Weight up to 250 kg

Note:
AERODIN is reserving the right to update the data according with new theory estimation, design or technology.
